$10.00
Awaiting product image

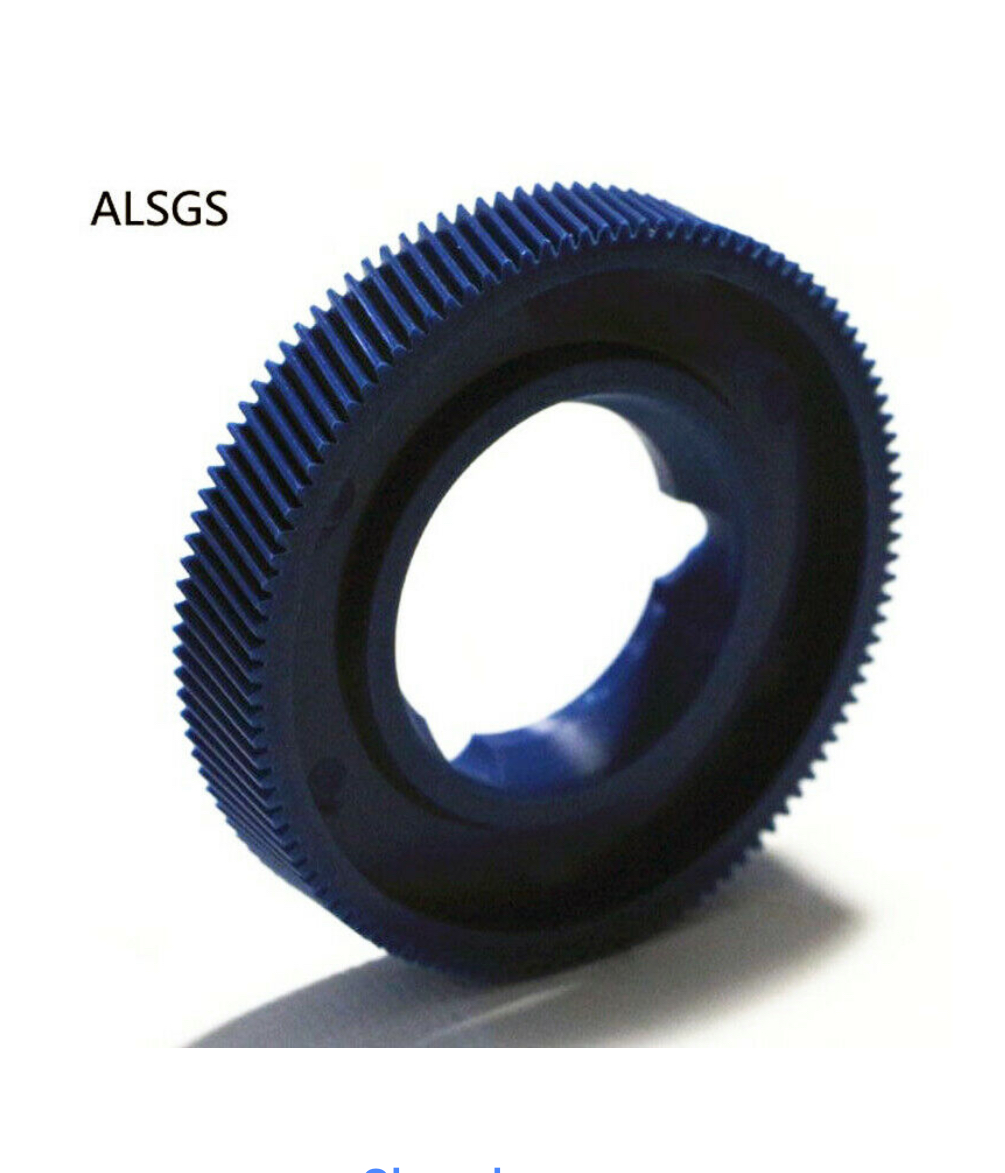

Plastic gear Power feed AL-510

Add to Wishlist
SKU: N/A
  • Sino model – KA-600 linear glass scale
  • Suits all lathe and mill machines
  • Unmatched accuracy
  • Quality resolution for best results
Add to Wishlist

$75.00 $65.00 Inc tax

Compare

Description

The Sino KA-600 Linear Glass Scale is here to increase your efficiency while working with lathes and mills for cutting, grinding, deforming, etc. This glass scale has a highly refined construction along with a super resolution of 5um for outstanding results. The maximum measuring speed of 60m/min combines range from 1000mm – 2500mm measuring length makes work flawless and quicker to do.  This scale also includes a connection board, an aluminum cover, and bits and screws for installation.

Features

  • High-refinement linear scale
  • Packed safely for international shipping
  • Includes USA, EUR, and UK power plug options
  • Includes complete accessories needed for installation

Technical Parameters

  • Available measuring length – 1800mm
  • Size – 30mm X 43mm
  • Accuracy – ±3, 5, 10 (20 degree, 680 F 1000mm)
  • Reference point – one unit per 50mm
  • Maximum measuring speed – 60m/min
  • Resolution – 5um
  • Output signal – TTL / EIA-422-A
  • Cable standard – 2m
  • Power consumption – 5V
  • Connector – 9 pins (1.A, 2.OV, 3.B, 4.Empty, 5.Z, 6.A, 7.+5V, 8.B, 9.Z

Package includes

  • Linear glass scale – 1pc
  • Connection board – 1pc
  • Aluminum cover – 1pc
  • Accessories for installation
